YIDI 5/10Set GX12 GX16 GX20 2 3 4 5 6 7 8 9 10 12 14 15 Pin Male Female Lc Cable Aviator Aviation Circular Connector Plug Socket

$109.20$453.63

Clear
SKU: N/A Category:

Description


If you need the dust cover for aviation connector, please click the picture below to buy.

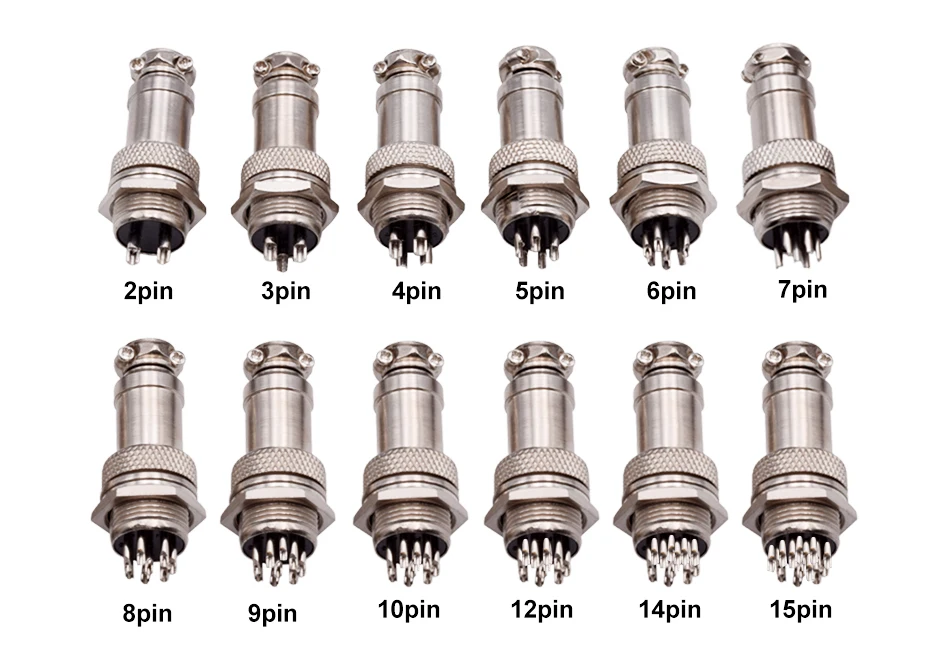

YIDI 5/10Set GX12 GX16 GX20 2 3 4 5 6 7 8 9 10 12 14 15 Pin Pins 12mm 16mm 20mm Male Female Lc Cable Round Aviator Aviation Circular Plug in Connector Angle Terminal Socket
Parameter:

1. GX12 Aviation Connector
Mounting Hole Diameter: 12mm
Pins Number: 2/3/4/5/6/7 pins
Material: Zinc Alloy/ Copper Ally
Termination Diameter: ≤5.0mm

2. GX16 Aviation Connector
Mounting Hole Diameter: 16mm
Pins Number: 2/3/4/5/6/7/8/9/10 cores
Material: Zinc Alloy/ Copper Ally
Termination Diameter: ≤7.5mm

3. GX20 Air Connector
Mounting Hole Diameter: 20mm
Pins Number: 2/3/4/5/6/7/8/9/10/12/14/15 Pin cores
Material: Zinc Alloy/ Copper Ally
Termination Diameter: ≤9.5mm

Packing list:
5sets= 5pcs Male Connector +5pcs Female Connector
10sets= 10pcs Male Connector +10pcs Female Connector

GX12 Circular Air Plug Connector Specification

Pins Number

2 Pins

3 Pins

4 Pins

5 Pins

6 Pins

7 Pins

Pin Position

Rating Current

7A

7A

5A

5A

5A

5A

Rating Voltage – AC

125V

125V

125V

125V

125V

125V

Withstand Voltage – AC

1500V

1500V

1500V

1500V

1500V

1500V

Insulation Resistance (MΩ)

1500

1500

1500

1500

1500

1500

Contact Resistance (MΩ)

10

10

10

10

10

10

Diameter of connecting hole(mm)

1.15

1.15

1.15

1.15

1.15

1.15

GX16 Aviator Connector Plug Specification

Pins Number

2 Pins

3 Pins

4 Pins

5 Pins

6 Pins

7 Pins

8 Pins

9 Pins

10 Pins

Pins Position

Rating Current

7A

7A

5A

5A

4A

4A

4A

4A

4A

Rating Voltage -AC

125V

125V

125V

125V

125V

125V

125V

125V

125V

Withstand Voltage -AC

1500V

1500V

1500V

1500V

1500V

1500V

1500V

1500V

1500V

Insulation Resistance(MΩ)

1500V

1500V

1500V

1500V

1500V

1500V

1500V

1500V

1500V

Contact Resistance(MΩ)

3

3

3

3

3

3

3

3

3

Diameter of connecting hole (mm)

2.45

2.45

2.45

2

1.15

1.15

1.15

1.15

1.15

GX20 Aviation Connector Specification

Pins Number

2 Pins

3 Pins

4 Pins

5 Pins

6 Pins

7 Pins

8 Pins

9 Pins

10 Pins

12 Pins

14 Pins

15 Pins

Pins Position

Rating Current

10A

7A

7A

10A

5A

5A

5A

5A

5A

5A

5A

5A

Rating Voltage -AC

250V

250V

250V

250V

150V

150V

150V

150V

150V

150V

150V

150V

Withstand Voltage -AC

1500V

1500V

1500V

1500V

1500V

1500V

1200V

1200V

1200V

1200V

1200V

1200V

Insulation Resistance(MΩ)

1000

1000

1000

1000

1000

1000

1000

1000

1000

1000

1000

1000

Contact Resistance(MΩ)

5

5

5

5

5

5

5

5

5

5

5

5

Diameter of connecting hole (mm)

2.95

2.95

2.95

2.95

2

2

1.5

1.5

1.5

1.5

1.5

1.5

SPECIFICATIONS

  • Brand Name: YIDI
  • Origin: CN(Origin)
  • Certification: CE
  • Model Number: GX12/GX16/GX20
  • Item No.: GX12/GX16/GX20
  • Mounting Hole Diameter: 12mm/16mm/20mm
  • Material: Zinc Alloy / Copper Alloy
  • Pin Number: 2/3/4/5/6/7/8/9/10/12/14/15 pins
  • Packing: Female + Male Connector
